HDA100

OUTPUT
120dB SPL driving typical 32 to 600 ohm headphones; HDA100 provides 16V p to p for high impedance headphones and up to. 2A p-p to low impedance headphones.

INPUT
+4 or -10dBu nominal level (internal jumper plug selection) for 1mW output. +24dBu maximum input level, 40Kohm balanced input impedance.

DISTORTION
.1% maximum THD, 20Hz to 20kHz, below clipping.

RESPONSE
+0/-.25dB 20Hz to 20kHz NOISE -94dBm E.I.N., 20kHz measurement BW.

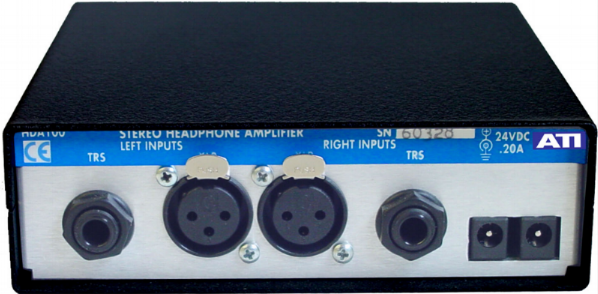

CONNECTORS
Input: ¼-inch TRS jacks and XLR connectors.

Output: ¼-inch TRS stereo jack.

Power: Cylindrical 5.5mm OD, 2.1mm 1D, pin negative.

POWER
HDA100: 24VDC nominal at up to .2A from external power supply, WA100-1, -2 or -2E.

SIZE
1.72' H X 5.75" W X 6.0"D; 1.5 lbs.

POWER SUPPLIES
WA 100-1 Wall mount power supply (UL, CSA), 24VDC @ .4 Amp, 115 VAC/60 Hz. WA100-2 Table top power supply with IEC 320 AC connector, 24VDC @ .4 amp, 230VAC/50 Hz.

MOUNTING
21075-501 Rack mounting kit

WARRANTY
Limited, One Year Warranty
